How Can Create a WiFi Heatmap Full Tutorial By Saftain Azmat

Wireless Network Coverage To Achieve Better Analysis And Make Wi-Fi Heatmap:

It would not be great in your home or office Wi-Fi network using the WiFi at first understand what coverage is among the best and worst.

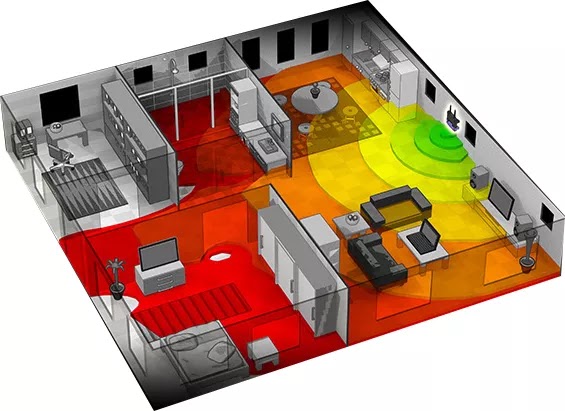

Let us show you how to create a heat map of Wi-Fi. This tutorial will help you easily create your own Wi-Fi heatmap. Since the hot and cold signals are power signals that power everywhere are maps showing the heat map.

Wi-Fi is a heat map of what?

Ponnala Apply instead you have a confirmed report that will be present will be able to decide which you should change the location of the router or router itself must change

What will be needed?

• Wi-Fi to create heat map you will need the following things:

• A laptop with Windows

• Heat Mapper software

• Sketch a map / image (this can be done without)

This time for the heat map to which there are several commercial software laptops, tablets and smartphones are supported. We have chosen the Ekahau HeatMapper software. One reason for this is that the software maker its best commercial software is a free product. Moreover, its performance is excellent and very easy to use.
Map as an image must be available. It need not be a professional type of map, but the scale of pencil lines on paper can set up their own map. Or even paint any graphics software program developed by a core bit map can be used in the process.
To energize your tutorial or to make it closer to reality at all planner5d.com I went to his house and prepared a simple map. Since all features of this site are maps that you would like to map a Web site.

Heat Mapper software

Ekahau HeatMapper following link you can download free. A form is available on the Downloads tab. Write your email address on this form must correct the downloading link will be emailed to you.

http://www.ekahau.com/wifidesign/ekahau-heatmapper

Approximate size of the heat-Mapper software is a hundred MB. Windows XP, Windows Vista, Windows 7 and Windows 8 operating systems support it exists.
To use this program in your system GB RAM, two GB hard disk space, a GHz processor and Wi-Fi or LAN Adapter must be present. Any internal or external Wi-Fi network can be used.
The installation is quite simple. User login administrator while you can easily install the setup can run.

Ekahau HeatMapper_1

During installation you will be asked to install special network driver. It should also install accepted.

Ekahau HeatMapper_2

Make heat map

When you run this program, then there will be two options in front of you that you do not have a map. You can choose a free option.

Ekahau HeatMapper 3

The left panel contains all accessible Wi-Fi access points gy.ap in the neighborhood of the access points will ignore their presence. It will not matter.
The map will be available in the middle of the right side is a leader guide. Mon. if you can read it by clicking the button above the small side stop it.

Ekahau HeatMapper 4

Heat Mapper your map is loaded it is ready to work for you. Side carrying his laptop in a blank space where it should be able to start work. Left click where you will be a small point. If you accidentally click lie can remove it by right-clicking.

Ekahau HeatMapper 5

There is a map where you can click the left. If you are still in the room and move the mouse around to make the rounds on the same side. Click the mouse to move from there to start the drive. You will see a green line on the map mark the position of your walk will be doing.
It is not necessary that the heat map of the home or office at the same time be prepared. Just like a heat map of the area you can make. The heat map when you stop somewhere in the middle, then click to the right.

It is not necessary to complete the heat map you walk along the walls. But even in the middle of the room and the position would be going back to see it. The strength of the signal in every way you could get the report.

Ekahau HeatMapper 6

After rotating the map by clicking Wright can finish his work. You will see the report in front of you will be present.

It would be delicious in the map that he will present it to your router automatically be telling him exactly the right position. In addition to other access points that you can guess from here to the house, which is located at the point, and access point signals that are coming to our house. There is a green area in which there are strong signals of the market. Light green is where there is some low power signals. The strength of signals from yellow to mark the area where the red color is very cold there are weak signals.

Ekahau HeatMapper 7

Router heat map which you want to save it by clicking on the button Take screenshot you can save the image.
While saving the image, it must give a new name, because the whole thing is happening on the map that you have created. If you did not rename the old file will be saved above. Through this heat map that you can easily decide to get stronger signals on how you should sit.
